What Matters for Latent Actions in Robot Learning

Authors

Xizhou Bu^♦¹, Qingda Hu^♦¹, Lei Zhou^♦⁸, Lingfeng Zhang², Yingbo Tang⁸, Zihao Liu⁴, Xinyi Tao³, Zhiqiang Ma⁶, Qingqiu Huang⁵, Chufeng Tang⁷, Hongbo Wang¹, Jing Zhang⁵, Jiayi Ma⁵, Hangjun Ye⁸, Wei Li^✻¹, Xiaoshuai Hao^✻⁸

♦ Equal Contribution ✻ Corresponding Author

¹ Fudan University ² Tsinghua University ³ Sichuan University ⁴ Shenzhen University of Advanced Technology ⁵ Wuhan University
⁶ Suzhou Evans Intelligent Technology Co., Ltd. ⁷ Morphi Intelligence Technology Co., Ltd. ⁸ Xiaomi EV

Project Page Arxiv Code Models Datasets

Highlight

Abstract

Latent Action Models (LAMs) have emerged as a promising paradigm for enabling robot learning to leverage large-scale unlabeled videos through latent actions that serve as compact surrogates for physical actions. Despite rapid progress, research on LAM remains highly fragmented, with existing methods evaluating different design choices in isolation under inconsistent experimental settings, making it difficult to identify the factors that truly determine downstream robotic manipulation performance. In this work, we present the first comprehensive empirical study of latent action learning for robotic manipulation. We unify representative LAM methods within a common autoencoding framework and systematically investigate 41 LAM design choices across three dimensions, including latent action modeling paradigms, learning objectives and regularization methods, and latent action integration strategies. We further examine four proxy metrics for evaluating latent action quality and assess their ability to reliably predict downstream robotic manipulation performance. Extensive experiments on three widely used benchmarks provide strong empirical evidence that fine-tuning vision-language model (VLM) backbones with latent actions provides a stronger initialization for downstream policy learning, with further validation on real-world robot manipulation tasks.

Key Contributions

Latent Action Modeling Paradigms

We show that the original LAPO method remains a remarkably strong baseline when trained directly on raw data, while simple semantic feature differencing using off-the-shelf visual encoders is also sufficient to yield competitive latent action representations.

Learning Objectives and Physical Action Prediction

We identify effective hyperparameter settings for different regularization methods, showing that properly tuned methods achieve comparable downstream performance. We further evaluate five latent action integration strategies and derive practical guidelines for effectively incorporating latent actions into physical action prediction.

Latent Action Dimensionality and Normalization

We show that a latent action dimensionality of 32 consistently achieves the best overall performance across both 7-DoF single-arm and 14-DoF dual-arm robot platforms. Additional latent action normalization is unnecessary when appropriate pretraining regularization is applied.

Proxy Metrics for Latent Action Quality

We find that FDM reconstruction metrics provide more reliable proxy measures of latent action quality than metrics derived from additionally trained probes. These proxy metrics are more suitable for coarse-grained model selection than for fine-grained ranking and are insufficient for reliably identifying the best-performing model.

Scaling Laws of Latent Action Pretraining

We demonstrate through both simulation and real-world experiments that fine-tuning VLM backbones with latent actions provides stronger initialization for downstream policy learning. Scaling up latent action pretraining consistently improves downstream robotic manipulation performance across diverse benchmarks.

These results summarize the main empirical message of the paper: latent action design matters across representation choice, action-head integration, and video fine-tuning scale. LAPO and semantic frame differencing provide strong latent-action supervision, action heads benefit when latent actions remain involved during downstream policy learning, and scaling Stage-II VLM fine-tuning with more diverse video data consistently improves downstream robotic manipulation.

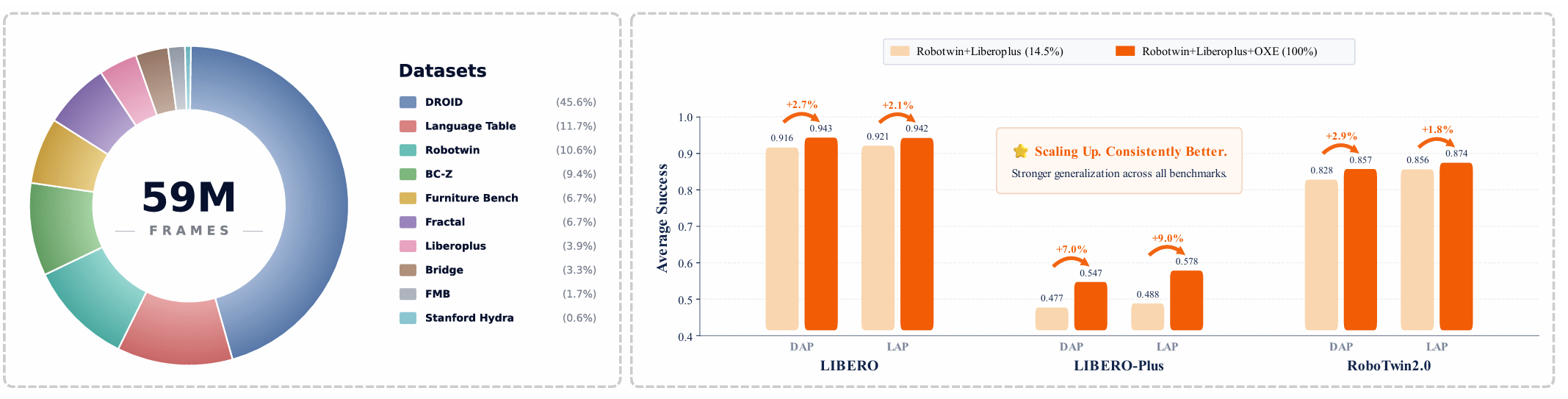

Effect of VLM Fine-Tuning Data Scale on Downstream Robotic Manipulation Performance

The left panel illustrates the data mixtures used for VLM backbone fine-tuning, where OXE includes all datasets except Robotwin and Liberoplus. The right panel compares downstream robotic manipulation performance under the same Stage III training configuration using VLM backbones fine-tuned with the two data scales shown on the left. This result isolates the effect of Stage-II VLM backbone fine-tuning data scale while keeping Stage-III policy training fixed. Increasing the amount and diversity of video-only latent-action fine-tuning data improves downstream manipulation performance, with the largest gains on benchmarks requiring stronger generalization.

Effect of VLM Fine-Tuning Data Scale on Downstream Robotic Manipulation Performance

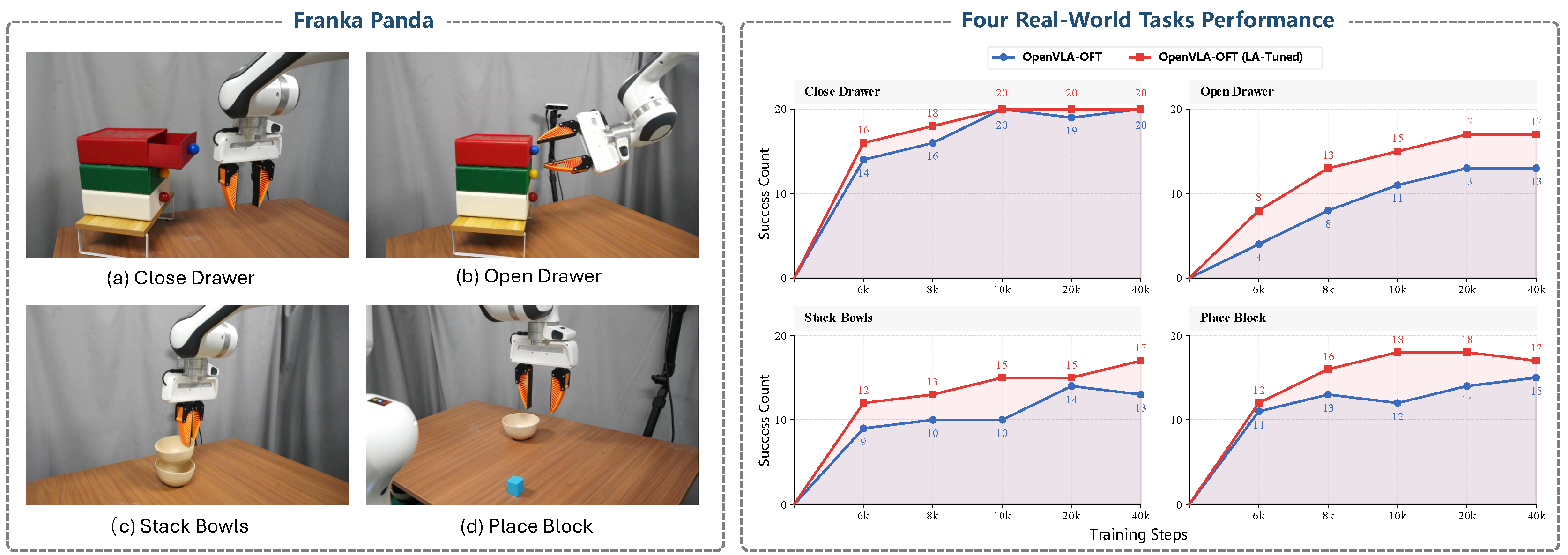

The left panel illustrates our 7-DoF single-arm Franka Panda platform equipped with a 1-DoF UMI gripper and 4 representative manipulation tasks. For each task, 50 robot demonstrations are collected under joint position control. The right panel compares the task performance of OpenVLA-OFT and our OpenVLA-OFT (LA-Tuned) throughout training. We evaluate checkpoints at 6k, 8k, 10k, 20k, and 40k training steps. Each checkpoint is evaluated over 20 independent trials, resulting in 100 evaluations per task for each method. All experiments use only a single front-view RGB camera as the visual input.

Across LIBERO, LIBERO-Plus, and RoboTwin2.0, LAPO achieves the strongest overall performance, while ΔDINO remains highly competitive and consistently outperforms optical-flow based representations. This suggests that semantic consecutive-frame differences capture action-relevant motion more robustly than pure geometric flow, especially under visual perturbations and distribution shifts.

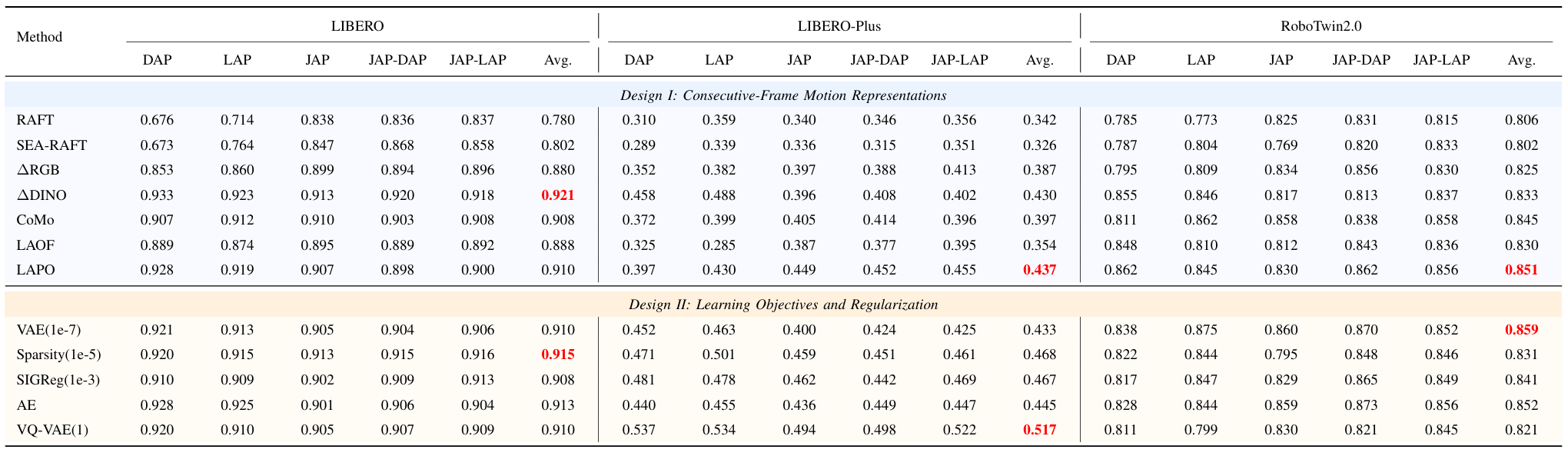

Main Performance Comparison

This table compares latent action designs across LIBERO, LIBERO-Plus, and RoboTwin2.0 under five action-head architectures. It highlights the overall strength of LAPO, the competitiveness of semantic frame differencing such as ΔDINO, and the weaker robustness of optical-flow based representations under perturbations.

LIBERO-10

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.620	0.652	0.684	0.668	0.708	0.666
SEA-RAFT	0.630	0.672	0.678	0.728	0.708	0.683
ΔRGB	0.708	0.720	0.814	0.792	0.812	0.769
ΔDINO	0.892	0.860	0.848	0.850	0.856	0.861
CoMo	0.840	0.842	0.840	0.824	0.836	0.836
LAOF	0.790	0.770	0.786	0.768	0.764	0.776
LAPO	0.882	0.862	0.862	0.802	0.814	0.844

LIBERO-goal

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.918	0.936	0.940	0.922	0.912	0.926
SEA-RAFT	0.932	0.914	0.938	0.946	0.938	0.934
ΔRGB	0.948	0.940	0.948	0.938	0.938	0.942
ΔDINO	0.964	0.962	0.950	0.962	0.960	0.960
CoMo	0.960	0.968	0.948	0.946	0.954	0.955
LAOF	0.962	0.936	0.958	0.948	0.960	0.953
LAPO	0.972	0.956	0.954	0.952	0.960	0.959

LIBERO-object

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.366	0.470	0.910	0.924	0.900	0.714
SEA-RAFT	0.330	0.662	0.936	0.962	0.952	0.768
ΔRGB	0.940	0.954	0.976	0.978	0.968	0.963
ΔDINO	0.996	0.990	0.980	0.980	0.972	0.984
CoMo	0.980	0.988	0.976	0.980	0.984	0.982
LAOF	0.962	0.954	0.976	0.974	0.976	0.968
LAPO	0.988	0.990	0.964	0.970	0.974	0.977

LIBERO-spatial

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.798	0.796	0.818	0.828	0.826	0.813
SEA-RAFT	0.798	0.808	0.834	0.836	0.832	0.822
ΔRGB	0.816	0.826	0.856	0.866	0.864	0.846
ΔDINO	0.880	0.880	0.874	0.888	0.882	0.881
CoMo	0.848	0.850	0.874	0.862	0.858	0.858
LAOF	0.842	0.834	0.860	0.864	0.868	0.854
LAPO	0.870	0.866	0.848	0.868	0.852	0.861

LIBERO-Plus-10

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.201	0.277	0.244	0.237	0.257	0.243
SEA-RAFT	0.211	0.272	0.303	0.277	0.305	0.274
ΔRGB	0.328	0.323	0.397	0.331	0.344	0.345
ΔDINO	0.435	0.468	0.415	0.405	0.428	0.430
CoMo	0.361	0.377	0.400	0.366	0.359	0.373
LAOF	0.275	0.257	0.305	0.308	0.356	0.300
LAPO	0.402	0.430	0.379	0.392	0.394	0.399

LIBERO-Plus-goal

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.274	0.306	0.394	0.430	0.438	0.368
SEA-RAFT	0.176	0.262	0.338	0.318	0.369	0.284
ΔRGB	0.438	0.399	0.457	0.462	0.477	0.447
ΔDINO	0.462	0.482	0.435	0.438	0.438	0.451
CoMo	0.381	0.416	0.418	0.462	0.452	0.426
LAOF	0.330	0.328	0.489	0.462	0.496	0.421
LAPO	0.379	0.435	0.513	0.516	0.511	0.471

LIBERO-Plus-object

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.392	0.442	0.314	0.317	0.324	0.358
SEA-RAFT	0.382	0.422	0.304	0.337	0.342	0.357
ΔRGB	0.377	0.470	0.395	0.392	0.440	0.415
ΔDINO	0.487	0.485	0.372	0.380	0.367	0.418
CoMo	0.357	0.410	0.437	0.415	0.387	0.401
LAOF	0.342	0.299	0.372	0.384	0.369	0.353
LAPO	0.362	0.415	0.447	0.430	0.430	0.417

LIBERO-Plus-spatial

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.371	0.409	0.406	0.400	0.403	0.398
SEA-RAFT	0.386	0.400	0.397	0.329	0.386	0.380
ΔRGB	0.266	0.337	0.340	0.366	0.392	0.340
ΔDINO	0.446	0.517	0.360	0.409	0.374	0.421
CoMo	0.389	0.394	0.363	0.412	0.386	0.389
LAOF	0.354	0.257	0.380	0.354	0.360	0.341
LAPO	0.446	0.440	0.457	0.471	0.486	0.460

RoboTwin2.0-easy

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.797	0.786	0.833	0.823	0.817	0.811
SEA-RAFT	0.798	0.810	0.765	0.822	0.841	0.807
ΔRGB	0.784	0.805	0.825	0.853	0.832	0.820
ΔDINO	0.836	0.826	0.797	0.812	0.832	0.821
CoMo	0.813	0.861	0.838	0.830	0.861	0.841
LAOF	0.849	0.799	0.802	0.843	0.827	0.824
LAPO	0.856	0.837	0.824	0.860	0.861	0.848

RoboTwin2.0-hard

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
RAFT	0.772	0.760	0.817	0.838	0.812	0.800
SEA-RAFT	0.776	0.797	0.773	0.817	0.825	0.798
ΔRGB	0.805	0.812	0.842	0.859	0.828	0.829
ΔDINO	0.873	0.866	0.836	0.814	0.842	0.846
CoMo	0.809	0.862	0.877	0.845	0.855	0.850
LAOF	0.847	0.821	0.821	0.843	0.844	0.835
LAPO	0.868	0.852	0.836	0.864	0.851	0.854

For continuous latent actions, regularization strength matters more than the specific regularizer: VAE, Sparsity, and SIGReg yield comparable downstream performance once properly tuned. VQ-VAE improves robustness on LIBERO-Plus under distribution shift, but its discrete bottleneck can reduce fine-grained control on LIBERO and RoboTwin2.0, making weak-to-moderate continuous regularization the safest default.

Main Performance Comparison

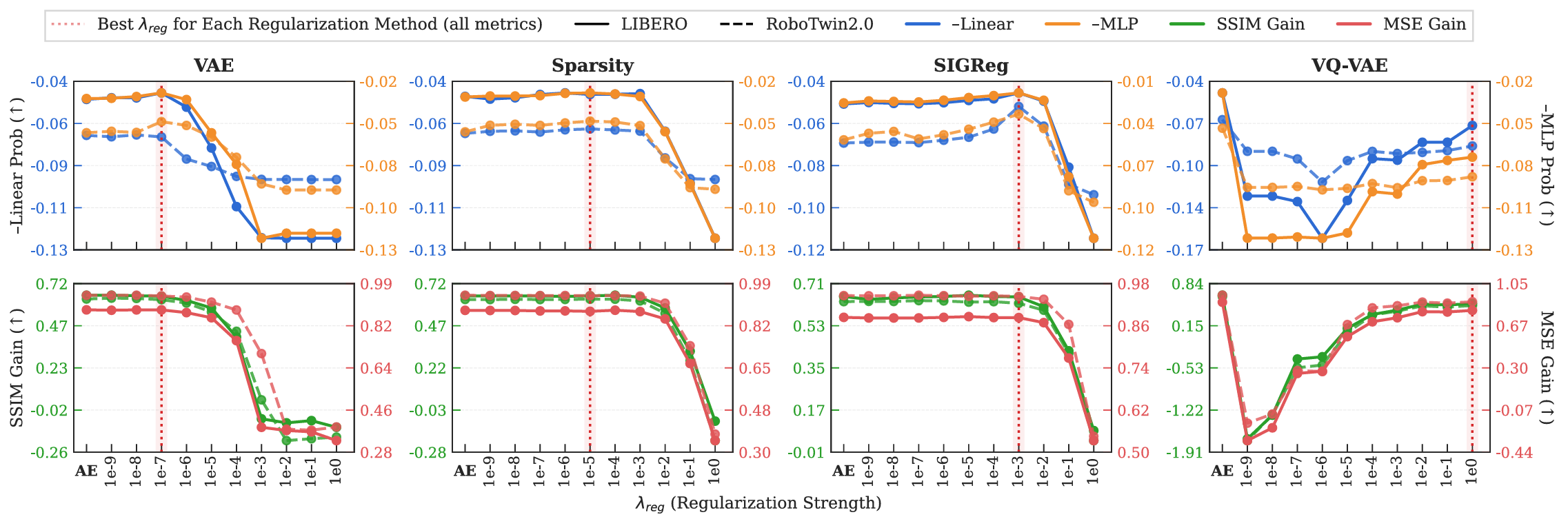

Effect of Regularization Strength λ_reg on Latent Action Learning for Different Regularization Methods

This result shows that regularization strength controls the balance between preserving transition dynamics and imposing latent-space structure. Overly strong regularization suppresses action-relevant motion information, so weak-to-moderate settings are preferred for continuous latent actions.

Effect of regularization strength on latent action learning

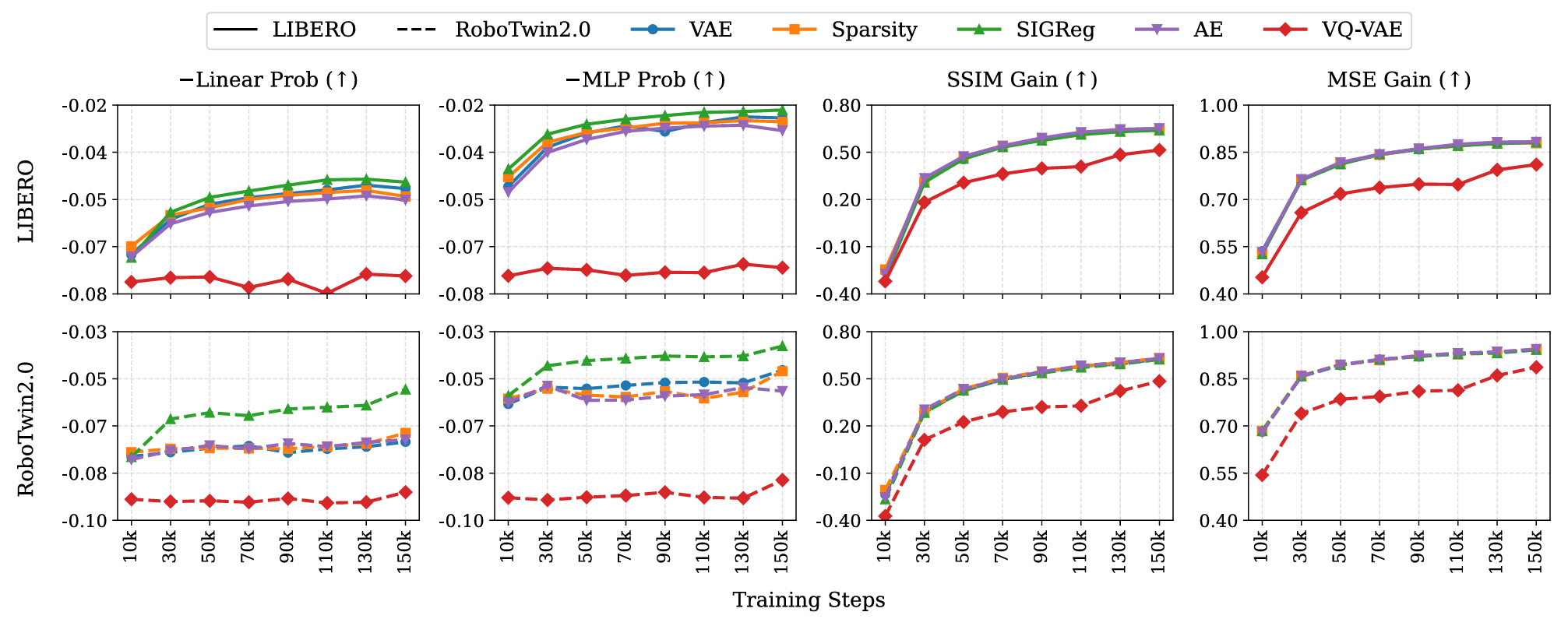

Performance of Different Regularization Methods Throughout Training

This training-process view tracks proxy metrics over Stage-I latent action learning. It shows that latent representations become progressively more action-relevant during training, while different regularizers shape the trade-off between physical-action recoverability and future-frame reconstruction quality.

LIBERO-10

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.872	0.850	0.846	0.822	0.838	0.846
Sparsity(1e-5)	0.876	0.854	0.848	0.868	0.862	0.862
Sigreg(1e-3)	0.836	0.830	0.810	0.836	0.830	0.828
AE	0.886	0.874	0.830	0.848	0.822	0.852
VQ-VAE(1)	0.860	0.852	0.834	0.858	0.850	0.851

LIBERO-goal

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.964	0.954	0.954	0.950	0.948	0.954
Sparsity(1e-5)	0.956	0.962	0.956	0.946	0.934	0.951
Sigreg(1e-3)	0.944	0.946	0.944	0.944	0.942	0.944
AE	0.972	0.964	0.946	0.952	0.956	0.958
VQ-VAE(1)	0.968	0.952	0.952	0.950	0.958	0.956

LIBERO-object

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.974	0.984	0.974	0.978	0.988	0.980
Sparsity(1e-5)	0.978	0.982	0.984	0.976	0.986	0.981
Sigreg(1e-3)	0.984	0.992	0.976	0.976	0.986	0.983
AE	0.982	0.990	0.970	0.978	0.982	0.980
VQ-VAE(1)	0.986	0.970	0.984	0.974	0.974	0.978

LIBERO-spatial

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.872	0.862	0.846	0.866	0.848	0.859
Sparsity(1e-5)	0.868	0.860	0.864	0.868	0.880	0.868
Sigreg(1e-3)	0.874	0.868	0.876	0.880	0.892	0.878
AE	0.872	0.870	0.858	0.846	0.854	0.860
VQ-VAE(1)	0.866	0.864	0.848	0.846	0.852	0.855

LIBERO-Plus-10

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.410	0.415	0.336	0.336	0.333	0.366
Sparsity(1e-5)	0.400	0.400	0.392	0.384	0.387	0.393
Sigreg(1e-3)	0.432	0.412	0.400	0.346	0.400	0.398
AE	0.407	0.417	0.415	0.422	0.420	0.416
VQ-VAE(1)	0.498	0.534	0.443	0.468	0.499	0.488

LIBERO-Plus-goal

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.487	0.509	0.443	0.509	0.494	0.488
Sparsity(1e-5)	0.511	0.553	0.518	0.531	0.521	0.527
Sigreg(1e-3)	0.504	0.533	0.521	0.562	0.555	0.535
AE	0.457	0.474	0.516	0.538	0.538	0.505
VQ-VAE(1)	0.560	0.555	0.518	0.521	0.553	0.541

LIBERO-Plus-object

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.452	0.475	0.405	0.417	0.405	0.431
Sparsity(1e-5)	0.475	0.508	0.432	0.420	0.425	0.452
Sigreg(1e-3)	0.495	0.488	0.465	0.417	0.447	0.462
AE	0.462	0.455	0.402	0.422	0.387	0.426
VQ-VAE(1)	0.545	0.528	0.510	0.515	0.540	0.528

LIBERO-Plus-spatial

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.457	0.454	0.417	0.432	0.466	0.445
Sparsity(1e-5)	0.497	0.543	0.492	0.469	0.511	0.502
Sigreg(1e-3)	0.494	0.480	0.463	0.443	0.474	0.471
AE	0.434	0.472	0.411	0.414	0.443	0.435
VQ-VAE(1)	0.546	0.517	0.506	0.486	0.494	0.510

RoboTwin2.0-easy

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.838	0.883	0.858	0.872	0.851	0.860
Sparsity(1e-5)	0.816	0.845	0.788	0.833	0.838	0.824
Sigreg(1e-3)	0.815	0.836	0.817	0.861	0.854	0.837
AE	0.824	0.840	0.850	0.868	0.844	0.845
VQ-VAE(1)	0.807	0.803	0.807	0.808	0.837	0.812

RoboTwin2.0-hard

Method	DAP	LAP	JAP	JAP-DAP	JAP-LAP	Avg.
VAE(1e-7)	0.838	0.867	0.862	0.868	0.853	0.858
Sparsity(1e-5)	0.828	0.842	0.802	0.862	0.854	0.838
Sigreg(1e-3)	0.818	0.857	0.840	0.868	0.843	0.845
AE	0.832	0.847	0.867	0.878	0.868	0.858
VQ-VAE(1)	0.815	0.794	0.852	0.833	0.852	0.829

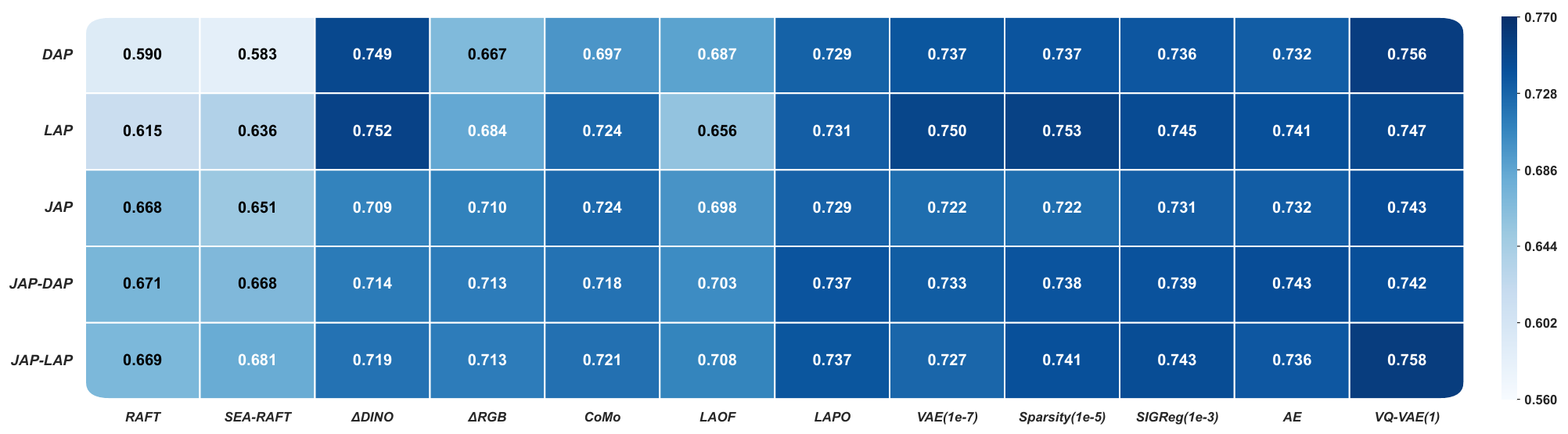

Different Action Head Comparison

Each cell reports the mean score over LIBERO, LIBERO-Plus, and RoboTwin2.0 for a specific combination of consecutive-frame motion representation (or regularization method) and action-head architecture. Darker colors indicate better average performance. DAP and LAP use the Action Inaccessible setting, while JAP, JAP-DAP, and JAP-LAP use the Action Accessible setting where latent actions and physical actions are jointly used to fine-tune the VLM backbone.

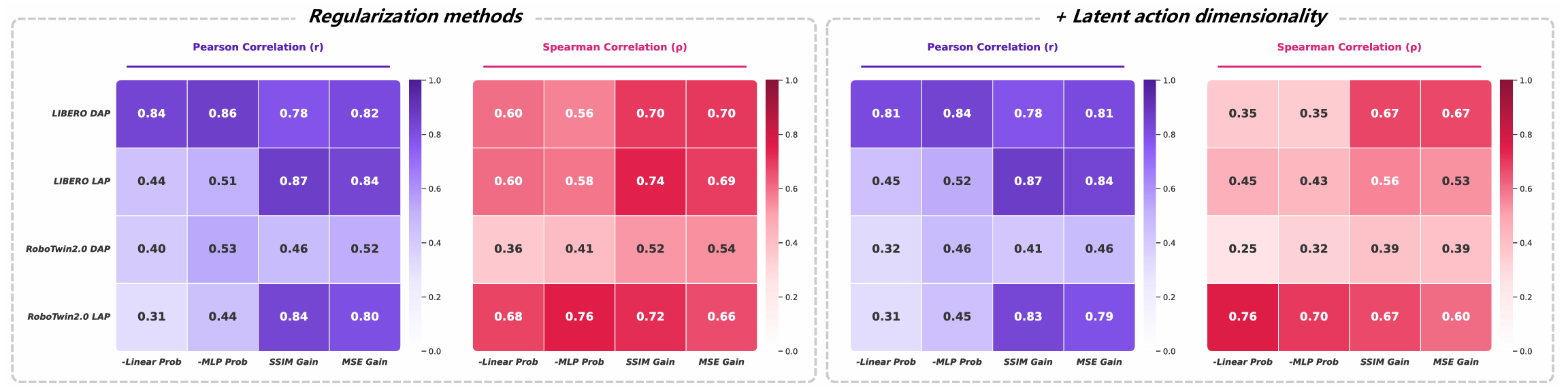

Correlation Between Proxy Metrics and Downstream Robotic Manipulation

The purple and red panels report Pearson correlation and Spearman correlation, respectively. The Regularization Methods setting computes correlations over AE plus VAE, Sparsity, SIGReg, and VQ-VAE configurations under different regularization strengths, while the + Latent Action Dimensionality setting further adds configurations with different latent dimensions. LIBERO DAP/LAP and RoboTwin2.0 DAP/LAP denote downstream evaluations with different action heads, and -Linear Prob, -MLP Prob, SSIM Gain, and MSE Gain are the four proxy metrics used to assess latent action quality.

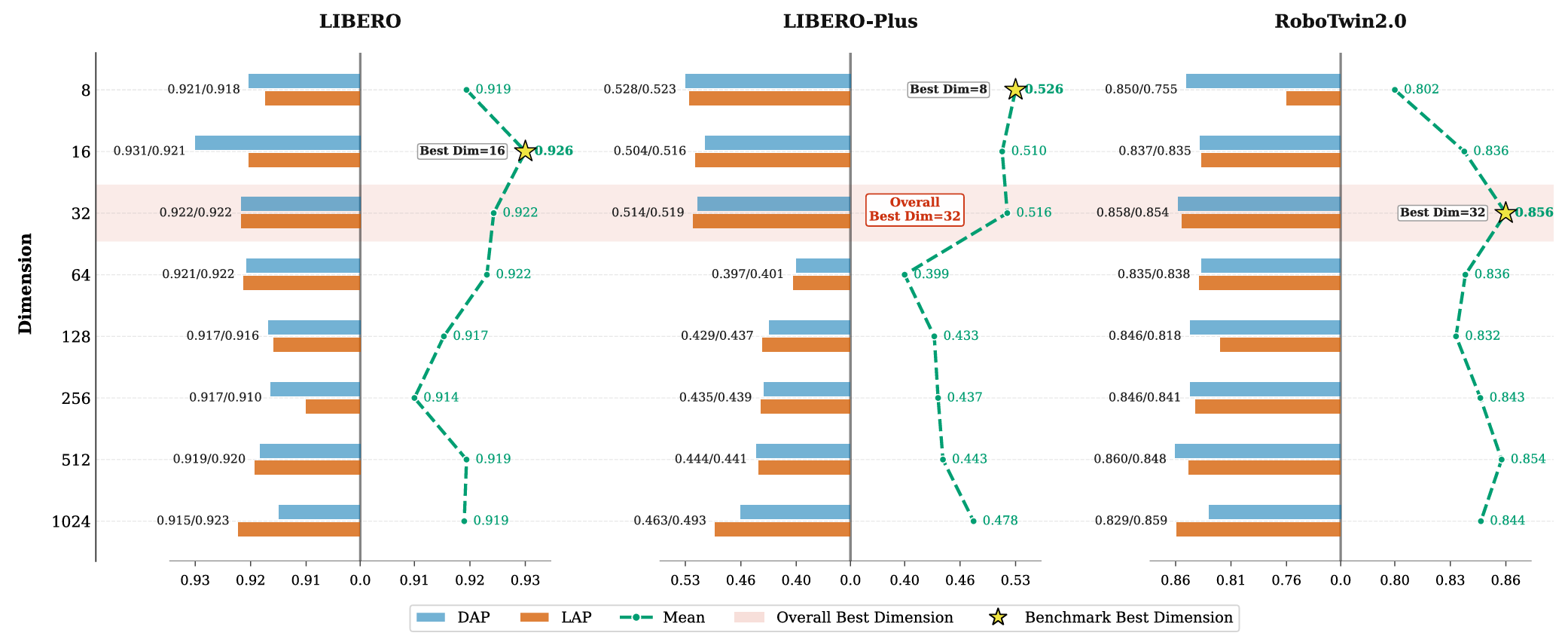

Effect of Latent Action Dimension on Downstream Robotic Manipulation Performance

This ablation studies how much latent capacity is needed for robot control. Compact dimensions can be sufficient for saturated single-arm benchmarks, but dual-arm manipulation needs more capacity; overall, a latent action dimension around 32 provides the best trade-off across platforms.

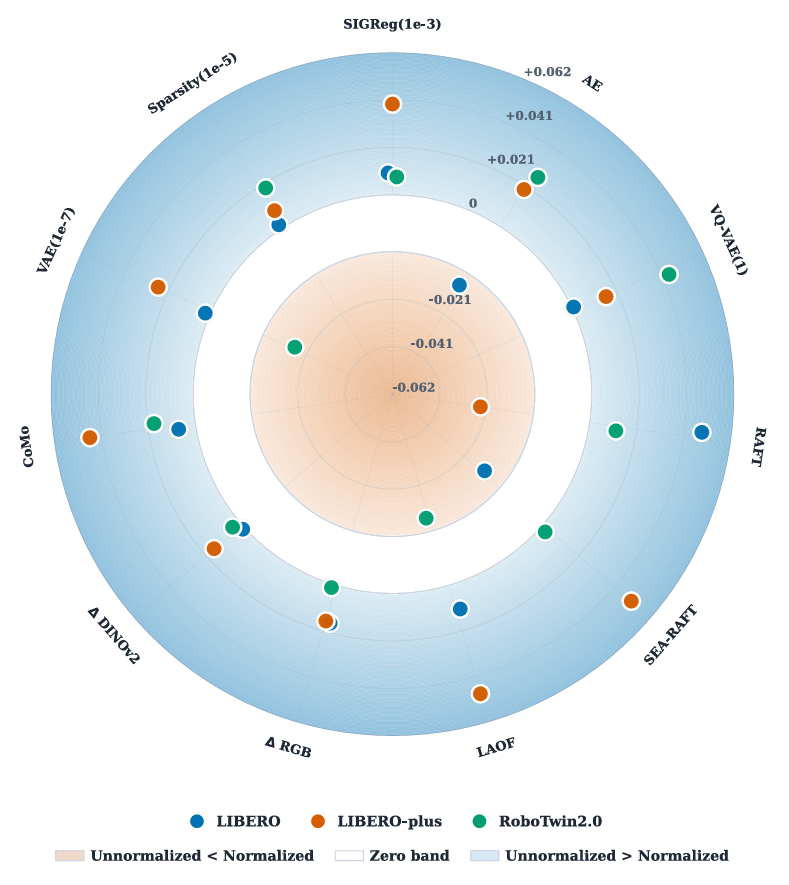

Performance Difference Between Unnormalized and Normalized Settings Across Methods and Benchmarks

This figure compares downstream performance with and without latent action normalization. When the latent space is already properly regularized, preserving the original latent scale often improves performance, suggesting that magnitude information can remain useful for policy learning.
